Sentinel – VoIP

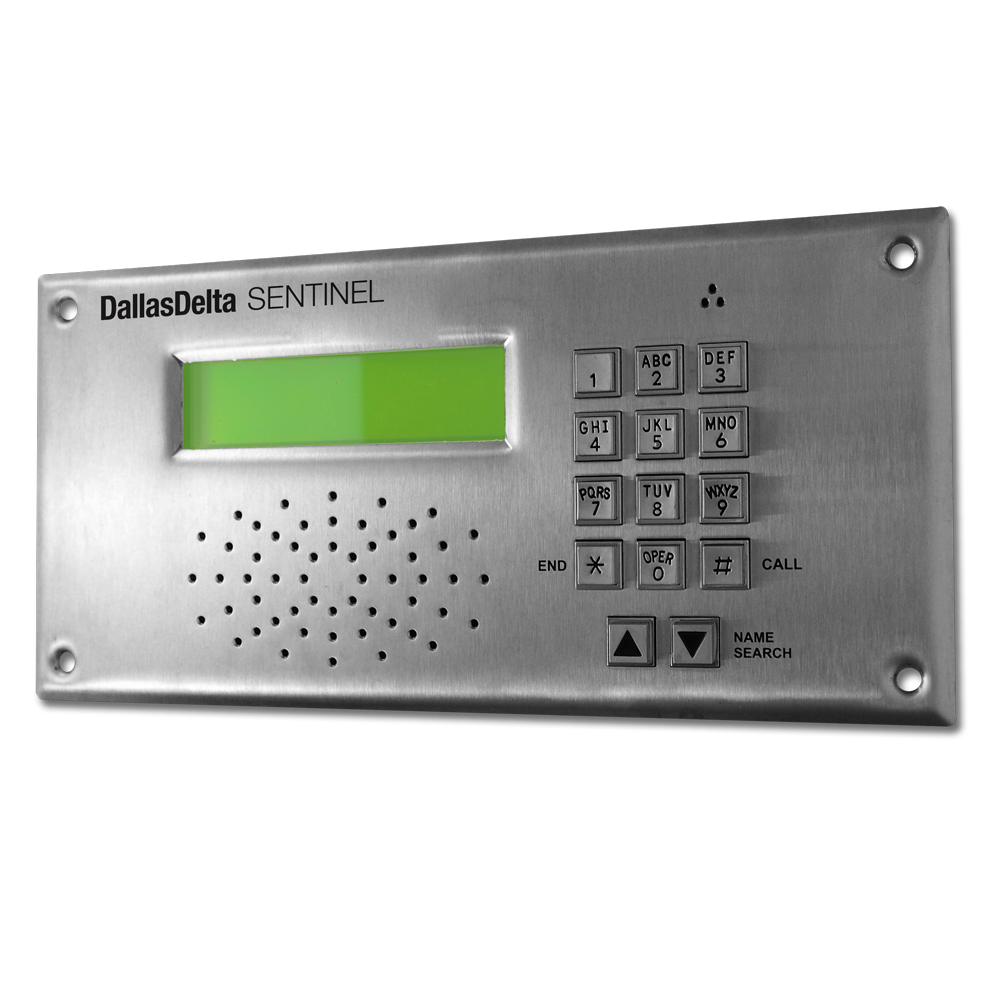

The Sentinel VoIP Doorstation is a loud-speaking, hands-free door station unit that secures entrances. With a vandal resistant stainless steel panel it is suited for unguarded entrance ways where a rugged vandal resistant door phone / station is required.

Download the brochure here sentinel.web

Clear
Login to see prices
SKU: N/A Category: Sentinel Doorstation

Description

The VoIP model allows quick and easy installation and standard IP-based communications network. It uses the SIP protocol for a fast and reliable connection to modern PBX systems. The Sentinel also provides a remote door/gate release feature that offers the ability for users to grant visitors entry when appropriate. A built in display makes it easy to find specific tenants or visitors can dial their extension directly.

The standard panel size for all Sentinel units is 130mm x 270mm, custom panel sizes and layouts can be tailor made to your needs. Panels are available in either vertical or horizontal, and can be anodised aluminium or stainless steel. If you require the panel to be made of different material (ie. Brass, gold-plated, etc), this too is available upon request.

Key Features:

  • 500 names and phone number capacity
  • firmware upgrade
  • SIP standard protocol
  • only requiring a 10 base ethernet
  • keyless door entry
  • dual line LCD with back light
  • up to 3 on board relays with unique codes (optional)
  • A Name & Phone Number capacity of 500 (16 digits max)
  • Two on board relays with unique codes (Up to 3 optional)
  • Half Duplex hands free operation
  • Keyless door entry
  • Dual line LCD with back light
  • Non volatile memory
  • Backup battery circuitry built in
  • Programmable company logo / building name
  • Auto hang up and auto answer facilities
  • Flexible 1 to 6 digit room numbers
  • RTC recording and storing of gate events
  • Half duplex hands free operation
  • Loud speaker output of 1 watt peak, one phone line required
  • Power pack supplied
  • Remote operating features (speaker and mic level control)
  • Dual remote relay activation (door/gate release)
  • Local programming facilities (optional no bill interface)
  • RFID card reader for gate release (optional)

Download the brochure here sentinel.web

Additional information

Orientation

Vertical, Horizontal
